3D Surface Creation with DesignConcept3D
  • ASCII / DXF / IGES / LASER SCAN input
  • Raster > Vector conversion of 2D drawings into 2D geometry
  • 2D > 3D Curve creation - projection of 2D curves into 3D splines

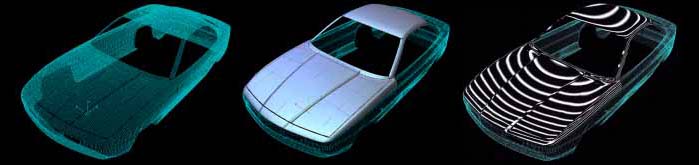

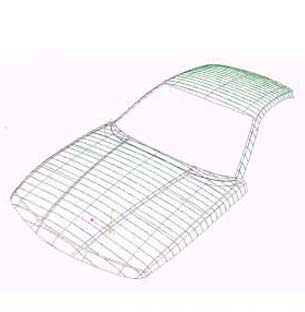

  • NURBS surface creation by:
    - Edge Boundaries
    - Cross-sectional data
    - Point cloud data - unique meshing algorithm fits ssurfaces through point cloud data
  • Surface Analysis Tools:
    - Highlight Evaluation
    - Point Cloud to Surface Evaluation
    - Curvature Evaluation
